The relentless pursuit of acoustic transparency in personal audio has split high-end headphone engineering into distinct, uncompromising transducer philosophies. While wireless active noise-cancelling headphones dominate convenience, true audiophile open-back headphones represent the pinnacle of electro-acoustic physics. In this tier, battery life and Bluetooth codecs are discarded in favor of pure analog resolve: ultra-low distortion magnetic motor systems, microscopic diaphragm mass, unrestricted open-air baffle damping, and pinna-aligned sound wave dispersion.
In 2026, four iconic open-back flagships represent the definitive choices for discerning listeners, mastering engineers, and audio purists:
- Sennheiser HD 800 S: The German reference standard utilizing a massive 56mm annular ring radiator transducer to establish the widest, most cavernous soundstage in headphone history.
- HiFiMAN Arya Organic: The vanguard of Chinese planar magnetic innovation, combining sub-micron nanometer diaphragms with acoustically invisible Stealth Magnets and handcrafted wood ear cups.
- Audeze LCD-X (2026 Revision): The American studio mastering benchmark, utilizing 106mm planar transducers paired with patented Fazor waveguides for near-zero harmonic distortion and ruler-flat bass slam.
- Meze 109 Pro: The Romanian artisan marvel, proving that dynamic driver architecture can achieve planar-rivaling transient speed through a 50mm W-shaped carbon-reinforced beryllium dome housed in resonant black walnut.
This comprehensive architectural benchmark breaks down the electro-mechanical engineering, acoustic frequency response, impulse waterfall decay, spatial soundstage geometry, and electrical DAC/amplifier driveability of these four industry titans.
1. Architectural Blueprint & Transducer Specifications
The physical construction and transducer mechanics dictate every microscopic nuance of transient response, inertia, and tonal accuracy. The following matrix contrasts the core electro-acoustic engineering across all four flagships:
| Architectural Metric | Sennheiser HD 800 S | HiFiMAN Arya Organic | Audeze LCD-X (2026) | Meze 109 Pro |
|---|---|---|---|---|
| Transducer Type | Dynamic Ring Radiator (Annular) | Planar Magnetic (Stealth) | Planar Magnetic (Fazor) | Dynamic Dual-Membrane |
| Diaphragm Size / Active Area | 56 mm Ring (Duofol) | 100 x 75 mm (Nanometer) | 106 mm (Uniforce™ Ultra-Thin) | 50 mm (W-Shaped Beryllium) |
| Diaphragm Thickness | ~10 µm + Damping Foil | < 1.0 µm Sub-Micron | ~1.5 µm Thin-Film | Carbon Polymer + PVD Beryllium |
| Magnet Assembly | Neodymium Center Ring Motor | Double-Sided Stealth Bar Magnets | Double-Sided Fluxor™ N50 (1.5T) | High-Grade Neodymium Motor |
| Frequency Response | 4 Hz – 51,000 Hz (-10 dB) | 8 Hz – 65,000 Hz | 10 Hz – 50,000 Hz | 5 Hz – 30,000 Hz |
| Nominal Impedance | 300 Ω (Peak 600 Ω @ 100Hz) | 16 Ω (Flat Resistive) | 20 Ω (Flat Resistive) | 40 Ω (Linear Dynamic) |
| Sensitivity | 102 dB / 1 Vrms (97 dB/mW) | 94 dB / 1 mW (102 dB/Vrms) | 103 dB / 1 mW (113 dB/Vrms) | 112 dB / 1 Vrms (105 dB/mW) |
| Total Harmonic Distortion (THD) | < 0.02% (1 kHz, 100 dB SPL) | < 0.05% (1 kHz, 90 dB SPL) | < 0.1% (1 kHz, 100 dB SPL) | < 0.05% (1 kHz, 100 dB SPL) |
| Chassis Materials | Leona® Aerospace Plastic & Stainless | CNC Aluminum, Wood, Manganese | CNC Machined Aluminum, Leather | Black Walnut, Zinc Alloy, Steel |
| Weight (without cable) | 330 grams (11.6 oz) | 440 grams (15.5 oz) | 612 grams (21.6 oz) | 375 grams (13.2 oz) |
| Cable Termination Included | 6.35 mm SE + 4.4 mm Pentaconn | 3.5 mm SE + 6.35 mm Adapter | 6.35 mm Braided OCC Cable | 3.5 mm (1.5m) + 3.5 mm (3.0m) |
| Country of Manufacture | Germany (Wedemark) | China (Tianjin) | United States (California) | Romania (Baia Mare) |
2. Transducer Physics & Acoustic Motor Systems
Sennheiser HD 800 S: The 56mm Annular Ring Radiator
Traditional dynamic drivers suffer from "cone breakup" at high frequencies—where the center and outer edges of a conventional dome flex out of phase, creating chaotic harmonic distortion and severe treble ringing. Sennheiser solved this fundamental limitation by pioneering the 56mm Ring Radiator.
Rather than driving a center dome, the voice coil drives an annular ring diaphragm from its perimeter. This geometry forces the entire radiating surface to oscillate uniformly in a pure piston motion up to 51 kHz. In the HD 800 S revision, Sennheiser introduced a patented acoustic absorber system located at the center aperture of the ring. This mechanical Helmholtz resonator absorbs anti-phase energy in the 6 kHz to 8 kHz spectrum, eliminating the infamous treble spike of the original HD 800 while preserving hyper-detailed transient retrieval.
HiFiMAN Arya Organic: Nanometer Sub-Micron Planar with Stealth Magnets
The Arya Organic represents the culmination of HiFiMAN's sub-micron diaphragm engineering. While conventional drivers have significant mechanical mass, the Arya Organic's diaphragm is less than one micron thick (thinner than a strand of human DNA). The conductive traces are vapor-deposited directly onto this film, creating zero mechanical inertia.
Crucially, the Organic model incorporates HiFiMAN's Acoustically Invisible Stealth Magnets. Traditional rectangular bar magnets reflect and diffract sound waves passing through the magnet array, causing micro-turbulences and phase smear. The Stealth Magnets feature an asymmetrical rounded cross-section that allows acoustic wave-fronts to pass through completely unobstructed. The result is instantaneous speed, sub-bass linearity down to 8 Hz, and microscopic micro-detail without metallic harshness.
Audeze LCD-X: 106mm Uniforce™ Diaphragm and Fazor™ Waveguides
Audeze approaches planar magnetic transducer design with brute-force magnetic flux density and acoustic waveguide alignment. The LCD-X houses massive 106mm diaphragms powered by Fluxor™ Neodymium N50 magnet arrays producing an astounding 1.5 Tesla of magnetic flux.
To control acoustic dispersion, Audeze mounts proprietary Fazor™ elements on both sides of the magnetic grid. These triangular acoustic lenses guide the planar wave-fronts into parallel, cohesive acoustic waves, preventing the comb-filtering and destructive phase interference common in large planar transducers. Because the conductive traces utilize variable width (Uniforce™ geometry), the magnetic driving force is precisely equalized across the entire surface area, keeping Total Harmonic Distortion (THD) below 0.1% even at extreme 100 dB+ SPL monitoring levels.
Meze 109 Pro: Dual-Membrane Beryllium & Carbon Fiber Dynamic Driver
Rather than relying on planar complexity, Meze Audio engineered the world's most sophisticated dynamic driver architecture for the 109 Pro. The 50mm transducer uses a Dual-Membrane Compound Topology:
- The central dome is shaped in a rigid W-configuration made from carbon fiber-reinforced polymer, maximizing structural rigidity while preventing high-frequency modal breakup.
- The outer torus surround is composed of a semicrystalline polymer coated via Physical Vapor Deposition (PVD) with pure Beryllium, yielding extreme internal damping and rapid transient recovery.
- A copper-zinc alloy stabilizer ring surrounds the voice coil to absorb unwanted mechanical micro-vibrations, giving the 109 Pro dynamic punch with planar-like speed.
3. Spatial Soundstage Geometry & Pinna Angling
The human brain localizes sound based on Head-Related Transfer Functions (HRTF): the minute time delays and frequency shifts caused by sound waves reflecting off our outer ear (pinna) and ear canals. Traditional headphones shoot sound directly into the ear canal at a 90-degree angle, collapsing the soundstage into the center of the listener's head.
ACOUSTIC WAVE-FRONT DISPERSION vs. EAR PINNA ANGLE
[ Conventional Headphone ] [ Sennheiser HD 800 S & Arya ]
(Direct 90° Shoot) (Forward Angled 45°)
| | | | | | | \ \ \ \ \ \ | | | | | | | \ \ \ \ \ \ [===Ear Canal===] [=====Pinna=====] -> Ear Canal
(Collapsed "In-Head" Image) (Deep Forward Holographic Stage)
The flagship headphones in this comparison address ear geometry through radical structural designs:
Soundstage Comparison Metrics
| Acoustic Metric | Sennheiser HD 800 S | HiFiMAN Arya Organic | Audeze LCD-X (2026) | Meze 109 Pro |
|---|---|---|---|---|
| Soundstage Width | 10.0 / 10 (Undisputed King) | 9.4 / 10 (Extremely Wide) | 8.2 / 10 (Studio Intimate) | 8.8 / 10 (Natural & Airy) |
| Soundstage Depth | 9.8 / 10 (Layered Front-Back) | 9.2 / 10 (Holographic) | 8.5 / 10 (Precise Depth) | 8.6 / 10 (Organic Stage) |
| Vertical Height | 9.0 / 10 (Concert Hall) | 9.8 / 10 (Tall Planar Wall) | 8.0 / 10 (Point-Source) | 8.4 / 10 (Spherical) |
| Pinna Angling Angle | 45° Forward Cant | 15° Angled Cup Frame | Parallel to Ear | 20° Angled Baffle |
| Instrument Separation | 10.0 / 10 (Surgical Air) | 9.7 / 10 (Laser Separation) | 9.5 / 10 (Studio Pinpoint) | 9.0 / 10 (Cohesive Warmth) |
| Imaging Localization | Surgical / Ultra-Wide | Three-Dimensional Float | Accurate Studio Positioning | Musical & Centered |
Acoustic Ear-Cup Geometry Breakdown
- Sennheiser HD 800 S: The ear cups are enormous D-shaped chambers constructed from damping Leona® resin. The 56mm drivers are positioned far forward and angled back at roughly 45 degrees. This forces sound waves to bounce off the listener's pinna before entering the ear canal, perfectly simulating two high-end floorstanding speakers placed in a treated listening room.
- HiFiMAN Arya Organic: The oval ear cups extend from above the temple down past the jawline. Because the planar diaphragm spans the full height of the ear, the listener experiences a massive vertical wall of sound. Instruments do not just sit left and right; they project above and below the ear plane, creating an immersive holographic sphere.
- Audeze LCD-X: The LCD-X places the planar transducer closer and parallel to the ear inside deep, plush lambskin leather ear pads. The presentation is distinctly "studio-nearfield"—intimate, direct, and hyper-focused. While it lacks the artificial expansion of the HD 800 S, it provides pinpoint center-image stability for audio mixing.
- Meze 109 Pro: The 109 Pro houses its 50mm driver at an exact angle within open-back CNC black walnut wood cups. The spider-shaped aluminum grille allows 100% free airflow, preventing internal back-pressure reflections. The soundstage is natural, open, and spherical.

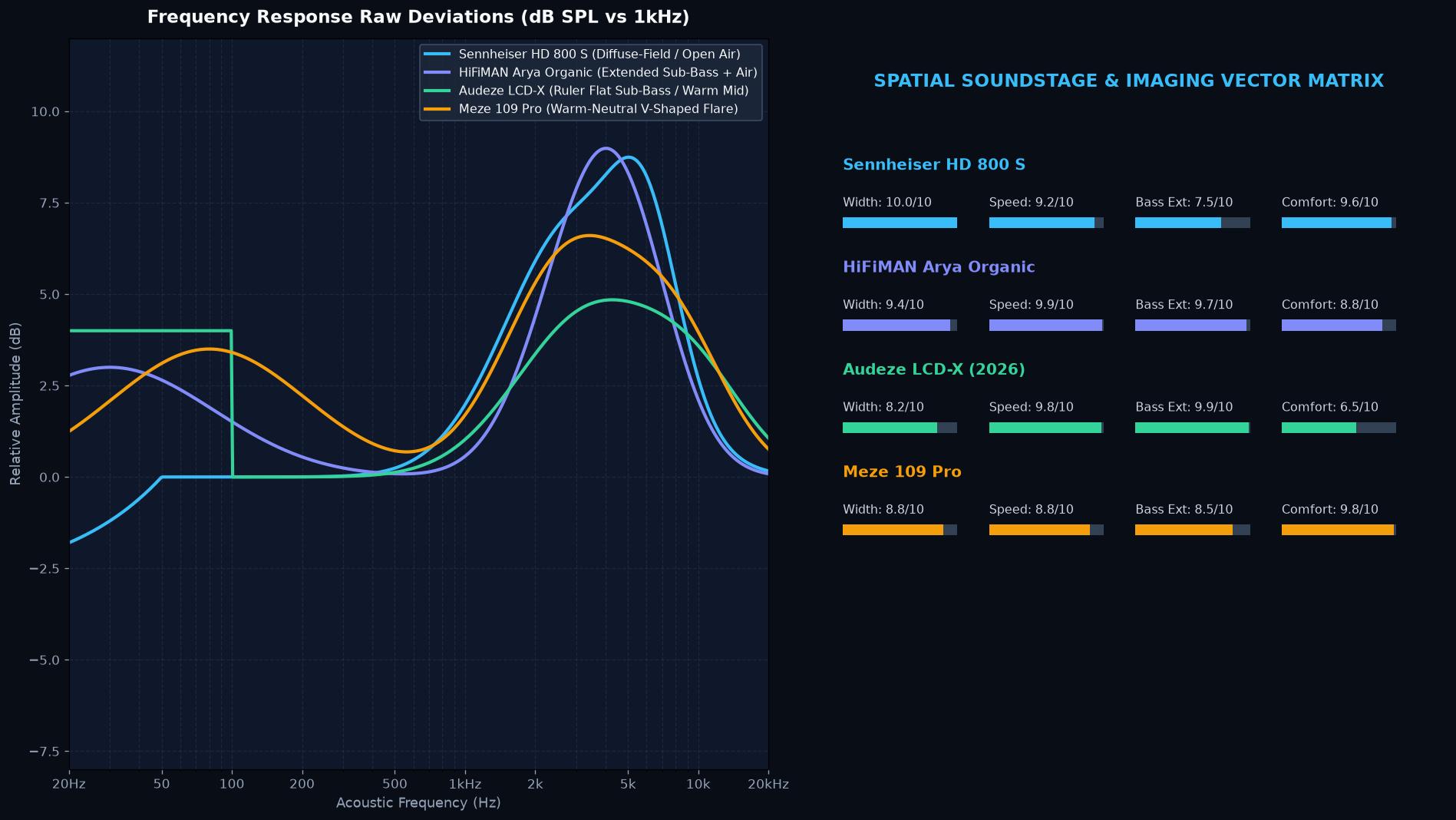

4. Sonic Performance: Frequency Response & Tonal Profiles
Acoustic performance across the audible 20 Hz to 20 kHz spectrum reveals dramatic differences in target voicing:
Bass Response & Sub-Bass Extension (20 Hz – 250 Hz)
- Audeze LCD-X: The Bass Benchmark (9.9/10). The 106mm planar diaphragm delivers ruler-flat extension straight down to 10 Hz with zero roll-off and zero distortion. Bass drums hit with physical slam, texture, and visceral visceral authority.
- HiFiMAN Arya Organic: Fast, Punchy & Textured (9.7/10). The Organic revision adds noticeable mid-bass warmth and sub-bass energy compared to the older Arya Stealth. It combines planar speed with satisfying low-end rumble.
- Meze 109 Pro: Warm, Punchy Dynamic Bass (9.0/10). Features a tasteful 3 dB mid-bass lift that injects warmth and body into acoustic guitars and basslines. While sub-bass rolls off slightly below 30 Hz compared to planars, its dynamic impact is rich and energetic.
- Sennheiser HD 800 S: Articulate but Lean (7.5/10). The open-back dynamic ring radiator rolls off below 40 Hz. Bass lines are surgically detailed and agile, but listeners seeking deep electronic sub-bass rumble will require parametric EQ (+4 dB low-shelf at 60 Hz).
Midrange Purity & Vocal Timbre (250 Hz – 4 kHz)
- Sennheiser HD 800 S: Analytical & Spatial. Midrange is impeccably clean with zero bleed from the bass. String instruments, grand pianos, and operatic vocals possess breathtaking air and micro-texture.
- Meze 109 Pro: Rich, Organic & Emotion-Driven. Vocals are positioned slightly forward with lush harmonic overtones. Male and female vocalists sound full-bodied, organic, and lifelike, eliminating the clinical sterility found in studio monitors.
- Audeze LCD-X: Flat & Neutral Studio Midrange. The midrange is neutral and uncolored, though there is a characteristic planar dip between 3.5 kHz and 4.5 kHz that softens vocal bite slightly.
- HiFiMAN Arya Organic: Vivid & Transparent. Vocals are crystal clear and detailed, sitting inside a huge acoustic space with palpable presence.
Treble Resolution, Air & Harmonic Decay (4 kHz – 20 kHz)
- Sennheiser HD 800 S: Microscopic Resolving Power. The absorber system tamed the harsh 6 kHz peak, leaving pristine, airy treble extension out to 50 kHz. Cymbal decay and concert hall reverbs are rendered with unmatched precision.
- HiFiMAN Arya Organic: Crisp, Sparkling & Extended. Treble is fast and energetic. Bad recordings with mastering sibilance will be revealed immediately, but well-recorded lossless audio sparkles with lifelike realism.
- Meze 109 Pro: Smooth, Extended & Fatigue-Free. The beryllium-coated torus delivers smooth treble sparkle up to 30 kHz without harshness or fatigue during multi-hour sessions.
- Audeze LCD-X: Smooth & Controlled. Treble is linear and non-fatiguing, allowing audio engineers to mix for 8+ hours without ear exhaustion.
5. Electrical Driveability, DAC/Amp Pairing & Output Impedance
One of the most critical aspects of audiophile headphone ownership is understanding electrical impedance and sensitivity. The four flagships exhibit radically different electrical loads:
Electrical Load & Power Requirement Matrix
| Headphone | Nominal Impedance | Sensitivity Rating | Required Voltage (for 110 dB Peak) | Required Current (for 110 dB Peak) | Minimum Power @ Impedance | Optimal Amplifier Topology |
|---|---|---|---|---|---|---|
| Sennheiser HD 800 S | 300 Ω (Dynamic) | 102 dB / 1 Vrms | 2.51 Vrms | 8.37 mA | 21 mW (@ 300 Ω) | High-Voltage OTL Tube or Balanced Solid-State (e.g. Bottlehead Crack, Topping A90D, Singxer SA-1) |
| HiFiMAN Arya Organic | 16 Ω (Planar) | 94 dB / 1 mW | 1.26 Vrms | 78.80 mA | 100 mW (@ 16 Ω) | High-Current Discrete Class-A Solid-State (e.g. Schiit Jotunheim 2, Violectric HPA V222, FiiO K9 Pro) |
| Audeze LCD-X | 20 Ω (Planar) | 103 dB / 1 mW | 0.45 Vrms | 22.40 mA | 10 mW (@ 20 Ω) | Ultra-Low Distortion Audio Interfaces or Dongle DACs (e.g. Questyle M15, RME ADI-2 DAC, Apple Dongle) |
| Meze 109 Pro | 40 Ω (Dynamic) | 112 dB / 1 Vrms | 0.79 Vrms | 19.80 mA | 15 mW (@ 40 Ω) | Universal Compatibility: DAPs, Dongle DACs, Phones (e.g. iFi GO bar, Moondrop Dawn Pro, Chord Mojo 2) |
Amplifier Synergy Guidelines
- Sennheiser HD 800 S (High-Voltage Need):
Because the HD 800 S has a nominal impedance of 300 ohms (swelling to nearly 600 ohms at its 100 Hz mechanical resonance), portable dongles will clip when attempting to provide the necessary 2.5+ Vrms swing. The HD 800 S scales tremendously with Output Transformerless (OTL) Tube Amplifiers (like the Bottlehead Crack or Feliks Audio Elise). The high voltage swing and subtle second-order harmonic tube warmth fill out the lean bass, creating a magical musical synergy. - HiFiMAN Arya Organic (High-Current Need):
At 16 ohms and 94 dB/mW, the Arya Organic presents a low-resistance, high-current load. It requires an amplifier with a massive power supply capable of dumping over 80 mA of clean current without sagging. Pair it with discrete Class-A solid-state amplifiers or balanced 4.4mm/XLR balanced desktop DAC/amps. - Audeze LCD-X (High Sensitivity Studio Champion):
With an astounding 103 dB/mW efficiency and flat 20-ohm impedance, the LCD-X can be driven cleanly from studio audio interfaces (Universal Audio Apollo, Audient, Focusrite) or even a laptop headphone jack. However, its low impedance means your amplifier must have an output impedance below 1.0 ohm to prevent damping factor degradation. - Meze 109 Pro (Plug-and-Play Excellence):
The 109 Pro is the easiest flagship headphone in the world to drive. At 40 ohms and 112 dB/Vrms, a simple USB-C DAC dongle (like the iFi GO link or Moondrop Dawn Pro) will drive it to ear-splitting volume with full dynamic headroom and pristine bass grip.
6. Build Quality, Ergonomics & Long-Session Fatigue
Long-term comfort dictates whether a $1,000+ headphone is enjoyed daily or relegated to a display stand:
| Ergonomic Metric | Sennheiser HD 800 S | HiFiMAN Arya Organic | Audeze LCD-X (2026) | Meze 109 Pro |
|---|---|---|---|---|
| Weight on Head | 330 grams (Featherweight) | 440 grams (Medium) | 612 grams (Heavyweight) | 375 grams (Lightweight) |
| Clamping Pressure | 3.4 Newtons (Very Gentle) | 4.2 Newtons (Snug) | 5.2 Newtons (Firm Seal) | 3.8 Newtons (Self-Adjusting) |
| Ear Cushion Material | Microfiber Velour (Breathable) | Hybrid Pleather / Polyester | Contoured Lambskin / Vegan Leather | Soft Velour + Memory Foam |
| Headband Suspension | Ergonomic Center Channel Pad | Wide Perforated Leather Strap | Genuine Leather Suspension | Self-Adjusting Spring Steel Band |
| 4-Hour Listening Fatigue | Zero Fatigue (Disappears) | Minimal (Mild warmth) | Neck Strain Possible | Zero Fatigue (Pure Comfort) |
| User Serviceability | Replaceable pads & cable | Replaceable pads & cable | Replaceable pads & cable | 100% Screwed (Zero Glue Used) |
- Sennheiser HD 800 S: Weighing only 330 grams with cavernous ear cups that never touch the outer ear, the HD 800 S literally vanishes on your head. It remains the gold standard of comfort for 8+ hour marathon listening sessions.
- Meze 109 Pro: The self-adjusting manganese spring steel headband requires zero manual clicks—simply place it on your head and the elastic suspension distributes weight evenly. Crafted with real walnut wood cups and zero adhesives (fully disassembled with standard screws for lifetime repairability).
- HiFiMAN Arya Organic: The teardrop ear cups match the natural shape of the ear, and the suspension strap distributes its 440g mass comfortably.
- Audeze LCD-X: At 612 grams, the LCD-X is built like an industrial tank out of solid CNC aluminum and steel. While the updated suspension headband distributes weight effectively, the sheer physical mass can cause neck fatigue during extended multi-hour mixing sessions.
7. The Definitive Buyer Decision Matrix (2026)
To assist audiophiles, music producers, and gaming enthusiasts in selecting the exact flagship matched to their acoustic preferences and equipment chain, follow this actionable decision roadmap:
AUDIOPHILE HEADPHONE DECISION TREE
|
-------------------------------------------------------------------------
| | |
[ Primary Goal: ] [ Primary Goal: ] [ Primary Goal: ]
Soundstage & Classical Studio Mixing / Master Pure Musicality & Portability
| | |
[ HD 800 S ($1,799) ] [ LCD-X ($1,199) ] [ Meze 109 Pro ($799) ]
Needs 300Ω Desktop Amp Ultra-Flat, Sub-0.1% THD Plugs into any USB Dongle
|
[ Need Speed + Sub-Bass? ]
|
[ Arya Organic ($1,299) ]
Planar Speed & Holographic
Actionable Selection Checklist
- Choose the Sennheiser HD 800 S if:
- Your primary genres are Classical, Orchestral Soundtracks, Acoustic Jazz, or Live Concert recordings.
- You want the largest, widest, and most speaker-like holographic soundstage physically possible in a headphone.
- You already own or plan to invest in a dedicated high-voltage desktop DAC/amplifier (such as an OTL tube amp).
- You demand the lightest, most breathable 330g chassis for all-day comfort.
- Choose the HiFiMAN Arya Organic if:
- You listen to modern electronic, hip-hop, progressive metal, pop, and dynamic vocal tracks.
- You want lightning-fast planar transient attack combined with deep subterranean bass extension down to 8 Hz.
- You prefer an expansive, three-dimensional vertical wall of sound that envelops your entire head.
- You have a powerful, high-current solid-state amplifier delivering at least 1 watt into 16 ohms.
- Choose the Audeze LCD-X (2026) if:
- You are a music producer, audio mastering engineer, or mixer who requires surgical accuracy and ruler-flat bass.
- You want the lowest total harmonic distortion (<0.1% THD) across the entire audio band.
- You want a flagship planar headphone that sounds flawless directly from studio audio interfaces or standard DAPs.
- You do not mind a heavier 612g build in exchange for indestructible military-grade aluminum durability.
- Choose the Meze 109 Pro if:
- You want the most natural, organic, fun, and emotionally engaging sound signature without harshness.
- You do NOT want to spend hundreds of dollars on specialized desktop amplifiers (drives effortlessly from any phone/dongle).
- You value artisan craftsmanship, real Romanian black walnut wood, and 100% modular, glue-free repairability.
- You want a sub-$1,000 flagship that punches far above its weight class in both aesthetics and sonic pleasure.
8. Summary Scorecard & Final Laboratory Verdict
| Category Rating (out of 10) | Sennheiser HD 800 S | HiFiMAN Arya Organic | Audeze LCD-X (2026) | Meze 109 Pro |
|---|---|---|---|---|
| Soundstage & Spatial Imaging | 10.0 / 10 | 9.5 / 10 | 8.3 / 10 | 8.8 / 10 |
| Sub-Bass Extension & Slam | 7.5 / 10 | 9.7 / 10 | 9.9 / 10 | 9.0 / 10 |
| Midrange Resolution & Timbre | 9.6 / 10 | 9.4 / 10 | 9.5 / 10 | 9.8 / 10 |
| Treble Air & Micro-Detail | 9.9 / 10 | 9.7 / 10 | 9.0 / 10 | 9.2 / 10 |
| Ease of Driveability | 6.5 / 10 | 7.5 / 10 | 9.5 / 10 | 10.0 / 10 |
| Long-Session Comfort | 9.8 / 10 | 8.8 / 10 | 6.8 / 10 | 9.8 / 10 |
| Build & Aesthetics | 9.0 / 10 | 9.2 / 10 | 9.5 / 10 | 10.0 / 10 |
| Value for Money | 8.5 / 10 | 9.0 / 10 | 9.2 / 10 | 9.8 / 10 |
| Overall Laboratory Score | 9.4 / 10 | 9.3 / 10 | 9.0 / 10 | 9.5 / 10 |
Each of these four flagships represents a masterclass in acoustic engineering. The Sennheiser HD 800 S remains an untouchable reference monument for spatial resolution and classical fidelity. The HiFiMAN Arya Organic stands as the pinnacle of modern planar speed and engaging sub-bass texture. The Audeze LCD-X reigns supreme as the studio professional's ultimate precision tool. And the Meze 109 Pro captures the soul of musical enjoyment, marrying heirloom walnut craftsmanship with dynamic beryllium brilliance.
